N70S_ Built-in UHF RFID PDA

Short Description:

Boost efficiency with C-Readertek‘s rugged industrial scanners. Designed for logistics, retail & harsh environments. Features explosion-proof certification, 24hrs battery life, and customizable solutions....


  • Screen: 5 inch
  • CPU: 8 core
  • RAM+ROM: 4+64G
  • OS: Android 12
  • Battery: 5000mAh
  • Size: 178mm*83mm*24mm
  • Weight: 350g

Product Detail

Product Parameters

Introduction

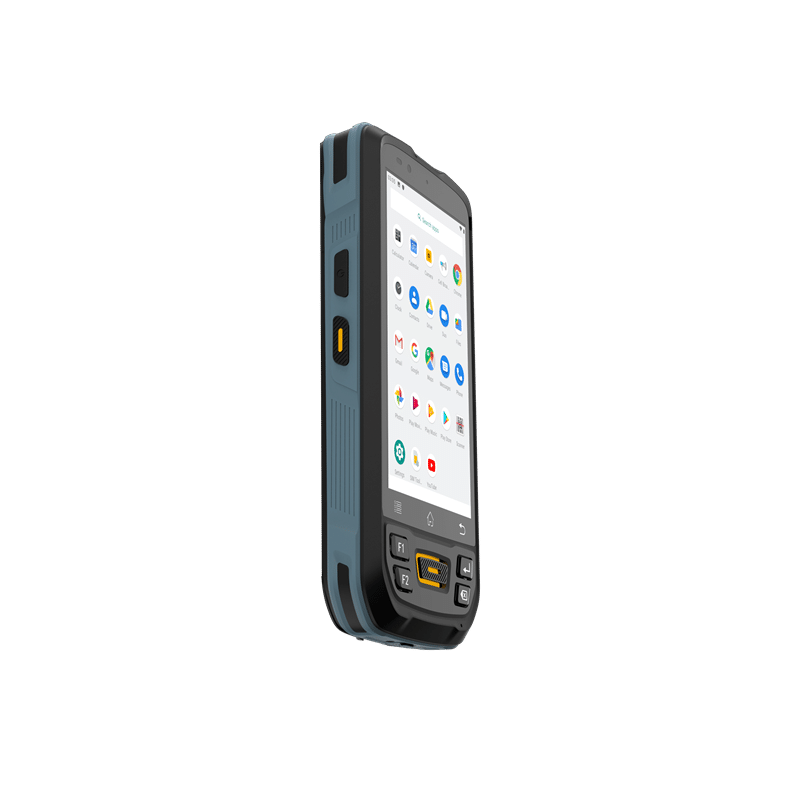

C-ReadeTEK  N70S  Rugged mobile computer is comply with MIL-STD-810 drop and shock proof, IP65 waterproof rated and equipped with a high strength Gorilla Glass touch panel, to help prevent shattered glass and easy scratches. And it come with an Android 11 OS , include features such as built-in NFC, 4G LTE, UHF ,Fingerprint laser barcode scanner. High performance and economic cost help C6200 become a ideal tool for industrial applications including Warehousing, Logistics, and commercial applications like Inventory Management, Retail, and Hospitality.


 N70s.pngConfiguration is high performance and powerful

Equipped with an 8-core 2.0GHz high-speed processor, the multi-core architecture brings surging power, easily copes with the needs of multi-task parallel processing, and ensures smooth operation of the system without lag.

It can support a maximum of 8GB of running memory + 128GB of storage space combination, large applications can be easily run, and massive data storage can be worry-free, meeting the needs of commercial-level applications.

Standard high-precision barcode/QR code scanning engine, 0.1 second ultra-fast recognition.Optional NFC near-field communication module, support contactless data interaction.Expanded RFID radio frequency identification function, realize batch label fast reading (optional configuration)


 Three-proof design adapts to various scenarios

Military-grade protection: Adopts one-piece high-strength shell, which is resistant to falling and impact, durable and adaptable to harsh working environments

Corning Gorilla Protective Screen: High-hardness scratch-resistant glass, wear-resistant and impact-resistant, and remains clear as new after long-term use.

All-weather operation experience: Supports wet hands and gloves touch, and can still operate accurately in rainy days or low temperature environments, without accidental touch or delay

IP67 dustproof and waterproof: Completely dustproof, can withstand immersion in 1 meter deep water for 30 minutes, fearless of harsh environments, and adaptable to warehousing, logistics, outdoor inspections and other scenes.



 N72S 电池.pngRemovable battery for worry-free battery life

5000mAh large-capacity battery: uses 4.35V high-voltage lithium polymer cells, with higher energy density and longer battery life, meeting the needs of high-intensity operations and stress-free use all day.

Removable design: supports hot-swappable battery replacement without shutting down and waiting, suitable for continuous operation scenarios to ensure uninterrupted work.

Pump Express+ fast charging technology: fully charged in 2.5 hours, charging in 30 minutes can meet several hours of work needs, greatly improving efficiency.

Intelligent power consumption management: optimize system energy consumption, with high-performance and low-power chips, extend the use time of a single charge, and reduce the trouble of frequent charging.


Performance parameters

CPU

8-core 2.0 GHz

OS

Android 12.0

Memory

4GB RAM + 64GB ROM (standard)

8GB RAM + 128GB ROM (optional)

Supports Micro SD (TF) up to 128 G expansion

Physical parameters

Size

173 (L) * 81 (W) * 24.8(T) mm

Weight

The whole machine is less than 350g (including battery)

screen

5.0 inch, resolution 720 *1280

Touch

Industrial Gorilla Five-Point Touch Screen

Backlight

Led backlight

Battery

Removable lithium-ion polymer battery, capacity: 5000mAh; 4.35 V normal use time: more than 8 hours, standby time: 300 hours

Card slot

Micro-SIM card * 1, TF card * 1

I/O

Type-C USB * 1 with OTG support

Network

4G/3G/2GWi-Fi

Notification

Sound, vibration

Audio

Microphone, speaker, earpiece

keybutton

Power button*1, volume +/-button, left / right scan buttonCustom buttons*2backspace*1Enter*1Scan*1

Power adapter

Charging time 3-4 hours, use standard power adapter and data cable to support optional fast charging, fast charging for 2.5 hours

Sensor

Gravity sensing, light sensing, distance sensing

PSAM

Support for 2 PSAM cards

Use environment

Operating temperature

-10 ℃ to 50 ℃

Storage temperature

-40 ℃ to 70 ℃

Humidity

5% to 95% (non-condensing)

Drop specification

Six sides and four corners can withstand a drop of 1.5 meters.

Rolling specifications

Continuous rolling of 1000 wheels for 0.5 m, and stable operation after rolling of 6 contact surfaces

Vibration

Random (10 Hz to 30 KHz); 60 minutes per axis, 3 axes

Electrostatic protection

+/-15 kV air discharge; +/-8kv contact

Degree of protection

IP67 meets IEC sealing standard

Wireless data communication

WWAN

Refer to product specification for details

WIFI

WIFI frequency: 2.4 GHz & 5 GHz

WIFI protocol: 802.11 a/B/G/n/AC protocol

GPS

Beidou, Glonass, GPS, Galileo

Bluetooth

Bluetooth 5.1 is supported

Data collection

Scan engine

QR code scanning engine, supporting Zebra, Horney and other brands

Support one-dimensional barcode type

UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128,

Code 39,Trioptic Code 39, Code 32, Code 93,

Code 11, Interleaved 2 of 5,Discrete 2 of

5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5, Inverse 1D, GS1 DataBar, Coposite Codes, etc.

Supports 2D

Code type

PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse,  Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Pstal, etc.

Cameras

Front camera: 5 megapixels
Rear camera: 13MP

Support autofocus and flash
